Superior Outback Tourer Leaf Sprung 3 Inch Lift, Track Corrected Chromoly Diamond Diff, 4.2T GVM Suitable For Toyota Landcruiser 79 Series Gen 2 Single Cab (VSC Models) - SUP-79VLTC-FED3RAKITSC20

Name: Superior Outback Tourer Leaf Sprung 3 Inch Lift, Track Corrected Chromoly Diamond Diff, 4.2T GVM Suitable For Toyota Landcruiser 79 Series Gen 2 Single Cab (VSC Models) - SUP-79VLTC-FED3RAKITSC20
Brand: Superior Engineering
SKU: 44871
Price: 19677.99999 AUD
Availability: InStock
Rating: 4.4 (95 reviews)

Brand: Superior Engineering	Product ID: 44871
SKU: SUP-79VLTC-FED3RAKITSC20

*Only Applicable To Vehicles With VTA-003477 Approval*

Available Options

Please Select Radius Arm Option For Kit

Please Select Rear Load for Spring Rate

Please Select Shock Option For Kit

Is Your Vehicle Fitted With A Toyota Factory Locker?

Yes

Nominated Wheel And Tyre Size for Speedo Calibration

$19,678.00 (Kit)

Supply Only Price.

qty :

Description

Build Australia’s Toughest Street Legal Leaf Sprung 79 Series Single Cab with a Superior Engineering Outback Tourer GVM Upgrade Kit.

Superior Outback Tourer Kits are the most comprehensive Post-Registration GVM Upgrades available on the market for Toyota Landcruiser 79 Series. Available for Workmate, GX & GXL, Outback Tourer 79 Series Kits are an all-inclusive Suspension, Steering & Brake Upgrade Package that gives you a GVM increase up to 4,200kg. Superior Outback Tourer 79 Series Kits are the ultimate solution for the discerning 79 Series owner, giving you piece of mind that your vehicle is not only built to tackle any terrain and conditions, but is 100% legal (In your state/territory) & supported by Superior Engineering & their Stockist Network.

THIS KIT MAY NOT BE ELIGIBLE FOR ENGINEERING APPROVAL IN YOUR STATE OR TERRITORY. MAXIMUM LEGAL LIFT HEIGHTS & TYRE SIZES VARY STATE TO STATE - PLEASE CONTACT YOUR LOCAL SUPERIOR ENGINEERING PRODUCTION FACILITY FOR ADVICE.

Supply, Fitment and Federal Approval is exclusively available through your local Superior Engineering Federally Approved Production Facility.

The cost of Fitting and Engineering Approval at your Superior Engineering Production Facility Starts at $6,700.00, including GST.

Engineering Costs Vary State to State - Please Contact your Superior Engineering Production Facility for a quote.

Front End

The front of your Outback Tourer Landcruiser is held up by our Australian Made Heavy Duty Coil Springs coated in our Signature Superior Silver Powder coat. Diff Housing Re-Alignment comes courtesy of the Superior Adjustable Panhard Rod which is manufactured from 32mm OD High Tensile Steel to suit any lift height from 2 Inch to 5 Inch and covered by a Lifetime Warranty against bending.

Radius Arm Options

All Outback Tourer Kits come standard with Superior Engineering Drop Radius Arms, with the option to upgrade to Superior Engineering Superflex or Hyperflex Radius Arms.

Drop Radius for the everyday driver
Superflex (Patented Design) for the weekend warriors
Hyperflex (Patented Design) for the vehicle built to tackle hard tracks every weekend

All Superior Engineering Radius Arms use Genuine Bushes, and are manufactured from Bis80 Steel with the Castor Correction needed at the lift. height achieved by your chosen Outback Tourer Kit. Superior Radius Arms are covered by a Lifetime Warranty against bending.

Steering

Correction of steering geometry back to OEM specifications and overall component strength are at the forefront of the Outback Tourer Steering Upgrades.

Superior Engineering Competition Spec Solid Drag Link and Tie Rod Steering Arms come standard across the range, topped off with our 2.0” Bore IFP Steering Dampener and Heavy-Duty Dampener Brackets. Superior Engineering Comp Spec Steering Arms are covered by a Lifetime Warranty against bending.

Shocks

All Outback Tourer Kits come standard with Superior Engineering 2.0 Remote Reservoir Shock Absorbers Front & Rear, with the option to upgrade to Superior Engineering 2.5 Remote Reservoir Shocks.

Superior Engineering Remote Reservoir Shock Absorbers feature an external compression adjuster knob as standard across the range, with an additional rebound adjuster feature included exclusively on the 2.5 Inch Bore Shocks. Included are our 70 Series specific Shock Reservoir Mounts front & rear designed to keep your Reservoirs securely fixed out of harm’s way.

Speedo Correction

Superior Engineering offer a Digital Speedo Correction Module to match your increased tyre size, resulting in an accurate and legal speedo reading.

Rear End

The centre piece of all Outback Tourer Leaf Sprung GVM Upgrades is our Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housing. Designed to bring the rear wheel track out parallel with the front diff, this housing is the ultimate in functionality & strength - covered by a Lifetime Warranty against bending or cracking.

OEM Locker & OEM Brake Assembly compatible, load rated to 3,150kg and manufactured from 830MPA Chromoly Steel, the Diamond Diff Housing is supported by GVM Suitable Leaf Springs fitted out with Polyurethane bushes, Greaseable Fixed Pins, Greaseable.

Colour Upgrade Options

Superior Diamond Diff Housings come in Satin Black Powder coat as standard, but can be upgraded to Superior Silver, Signal Red, Blaze Blue or Sandy Taupe. Please Contact Your Local Superior Engineering Production Facilitiy for Pricing.

Axle Set

Outback Tourer Diamond Diffs come standard with 300m Axles manufactured by RCV in the United States, which are covered by a lifetime warranty against breaking. These axles are coupled with our 4340M Billet Drive Plates and topped off with Anodized Blue alloy axle caps etched with the Superior Engineering Logo.

Brakes

Superior Outback Tourer Kits include a number of important upgrades to the standard braking system, giving you the confidence that your 70 Series has the Braking Performance needed when loaded to your new Gross Vehicle Mass. These changes include a Double Diaphragm Brake Booster, Stainless-Steel (Braided) Chassis to Diff Brake Lines and Stainless-Steel (Braided) Brake Caliper Lines Front & Rear. The cherry on top - Superior Engineering’s Patented Handbrake Upgrade Kit.

Chassis Brace

All Leaf Sprung Outback Tourer Packages are equipped with a Weld-On Chassis Brace Kit to support the increased Gross Vehicle Mass.

The Little Things

On top of everything you have seen above, Outback Tourer Kits include a wide range of smaller functional components used to assist in the correction of your Suspension & Steering Geometry including Bump Stop Extensions & Sway Bar Extensions to name a few. A number of other components are included as part of the Approval Process including Superior Engineering Branded Mudflaps and LED Category-6 Indicators for your Front Guards.

Guard Decals

Superior Engineering has made sure everyone you drive past or park next to knows just what you’re driving when they look up at you, thanks to our Superior Outback Tourer Chrome Guard Decals.

Suitable Accessories

Superior Engineering offer a range of suitable additional accessories for your Outback Tourer including Brown Davis Long Range Fuel Tanks, Rock Slider Side Steps & More. Please Contact Your Local Superior Engineering Production Facilitiy to discuss your options.

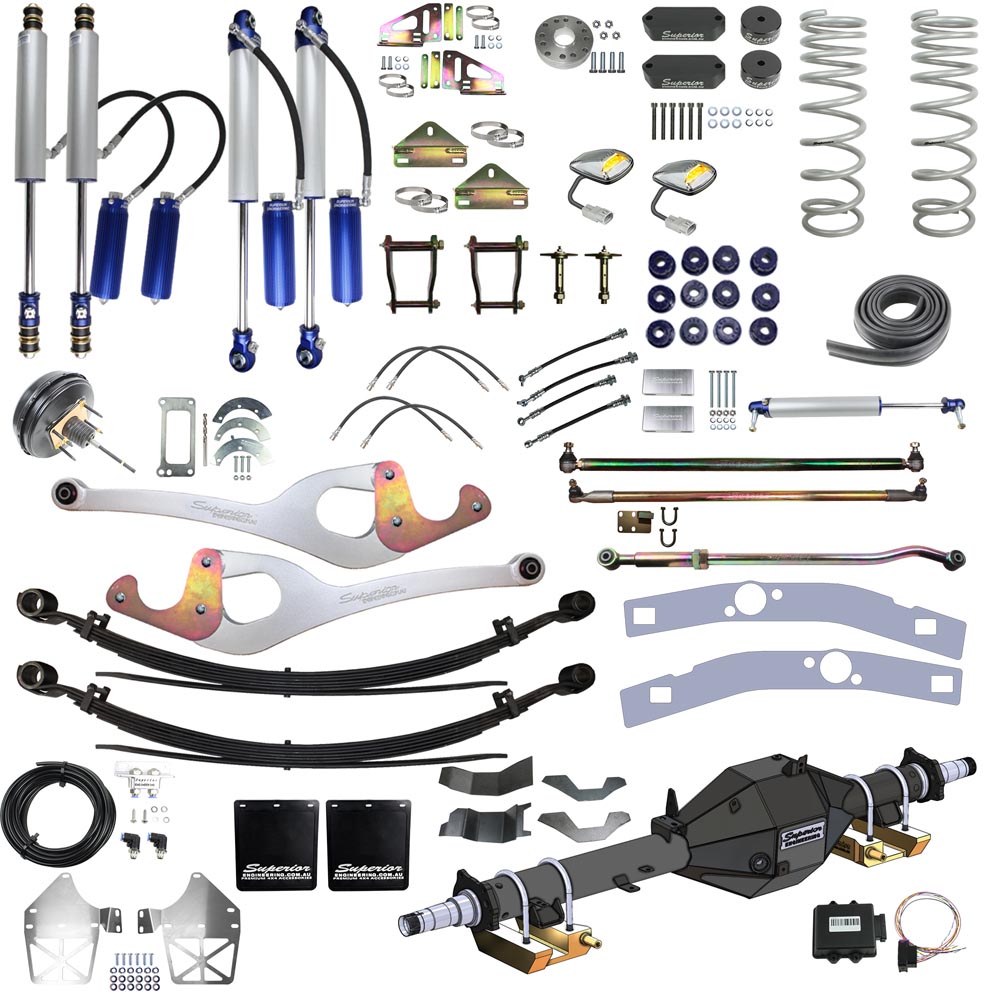

Kit Includes

Superior HD Coil Springs 3 Inch Lift Front (Pair)
HD Leaf Springs 3 Inch Lift Rear (Pair)
Superior Leaf Sprung Track Corrected Chromoly Diamond Diff Housing
Superior Engineering Remote Reservoir Shocks - Front (2.5" Bore Shock Upgrade Available)
Superior Engineering Remote Reservoir Shocks - Rear (2.5" Bore Shock Upgrade Available)
Superior Shock Reservoir Mount Front (Pair)
Superior Shock Reservoir Mount Rear (Pair)
Superior Engineering IFP Steering Damper
Superior Radius Arms (Superflex or Hyperflex Arm Upgrade Option Available)
Superior Panhard Rod Adjustable Front
Superior Comp Spec Heavy Duty Solid Bar Drag Link Adjustable (Each)
Superior Comp Spec Solid Bar Tie Rod Adjustable (Each)
Polyurethane Leaf Spring Bush Kit Polyurethane Rear
Greasable Fixed Pins (Pair)
Superior Anti-Inversion Extended Shackles
Superior Alloy Sway Bar Extensions Front (Pair)
Superior Handbrake Upgrade Kit
Upgraded Brake Booster
Braided Brake Lines Front (Pair)
Braided Brake Lines Rear (Pair)
Braided Caliper Lines Front (Pair)
Braided Caliper Lines Rear (Pair)
Superior CAN Bus Speedo Corrector (Each)
Superior Mudflap Bracket (Offset Specific Options Available)
Superior Rubber Mudflaps (Pair)
Superior 2 Port Diff Breather Kit
Superior Bump Stop Extensions Front (Pair)
Superior Bump Stop Extensions Rear (Pair)
Genuine Toyota Rear Bump Stop (Pair)
Wheel Arch Flares (Rubber)
Superior Engineering Outback Tourer Chrome Guard Decals
Led Cat 6 Side Repeater Indicators
Superior LCR79 Single Cab Weld-In Outer Chassis Brace Plates (Pair)
Superior Front Crossmember Modification Plate Kit

Features

Australian Made & Owned
Lifetime Warranty against bending on Superior Engineering Manufactured Components
Australia’s most comprehensive Leaf Sprung GVM Upgrade for VDJ79 Series
3 Radius Arm Options – Drop Radius, Superflex or Hyperflex
2.0” Bore or 2.5” Bore Remote Reservoir Shock Options
Includes Chromoly Track Corrected Diamond Diff Housing with 300m Axles as Standard

Specifications

Increase of up to 75mm in Suspension Height over OE (Depending on Spring Selection & Vehicle Loading)
Increase to 4,200kg Gross Vehicle Mass (GVM)
Retains OEM 3,500kg Braked Towing Capacity
Retains OEM 6,900kg Gross Combined Mass (GCM)
3,150kg Rear Axle Load – The Highest Axle Rating in Available in the Market
Maximum Allowable Tyre Sizes Vary State to State. Please contact your Superior Engineering Production Facility for Advice.
Maximum Allowable Lift Heights Vary State to State. Please contact your Superior Engineering Production Facility for Advice.

*Specifications are correct at time of publication.

Available to be built on the below Toyota Landcruiser (11/2016 - 09/2022) Variants Only:

- Toyota LandCruiser 79 Series Single-Cab Workmate (VTA-003477)
Toyota LandCruiser 79 Series Single-Cab GX (VTA-003477)
Toyota LandCruiser 79 Series Single-Cab GXL (VTA-003477)

* Outback Tourer GVM Kits are not inclusive of a vehicle. Customer to supply a vehicle for the installation of this kit.

* Outback Tourer GVM Kit Installation prices are a guide only. Damage or wear on your vehicle can increase this cost.

* Vehicles may be shown with optional modifications or additional extras/accessories that are not included in Outback Tourer Kits such as Wheels & Tyres.

* Pending your nominated Wheel & Tyre package, additional components may be required for legalities such as Extended Flares.

* Product images may not be an exact reflection of the supplied components due to constant product development & changes.
