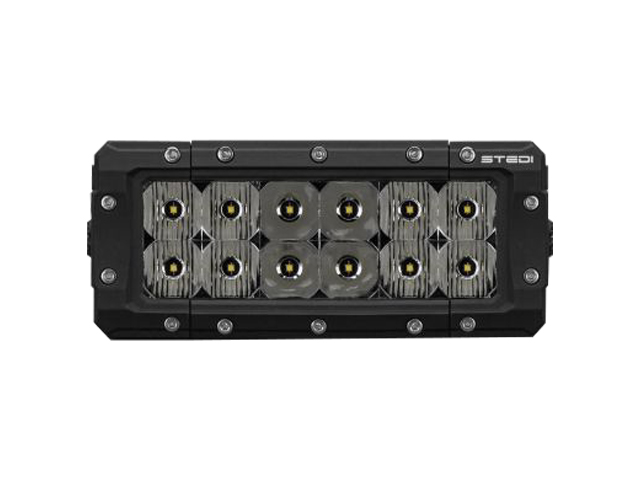

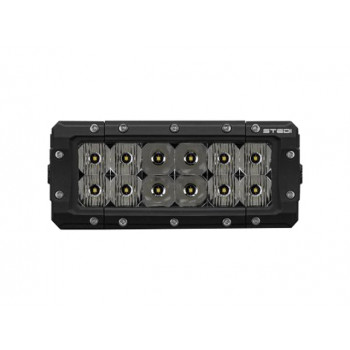

STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L

Brand:  STEDI Lights Product ID:  37185
SKU:  LEDST4K-8-12L

$129.00  (Each)

Supply Only Price.

-+
|
Universal Product Banner
STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L

THE PINNACLE OF PERFORMANCE.

By harnessing the power of PURE Drive™ technology, our range of STEDI ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.

JACK OF ALL TRADES.

The ST4K™ 8 Inch LED Light Bar brings together the strengths of both spot and flood reflector distributions, to provide an amazing 363m delivery, with 55m on each side of the vehicle with the flood beam.

AN ENVIABLE PEDIGREE.

The STEDI ST4K™ 8 Inch LED Light Bar has been founded on the STEDI TYPE X pedigree; the exemplar of high-performing Driving Lights. With the might of 12 x OSRAM’s® OSLON® LEDs, the ST4K™ 8 Inch LED Light Bar will not shy away from the ability to be the perfect all-rounder for any situation.

STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L
STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L
STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L

THE NITTY-GRITTY.

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

KEY FEATURES

  • STEDI ST4K-52 features 52 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matching optical properties.
  • 8 Flood + 36 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 755m
  • Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
  • Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

  • A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
  • Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!
  • Environmentally sealed Deutsch ® DT connector.

Backed by our no-nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY

We know you want flexible mounting options, which is why we’ve included two separate mounting options.

  • The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar tech very straight forward.
  • Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands, our kit has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsoever.

No nonsense 5 Year Replacement Warranty backed by an Australian company that has a bricks & mortar presence.

TECH SPECS

LED MANUFACTUREROSRAM (Oslon)®
LED COUNT12
VOLTAGE12V & 24V
LENS MATERIALOptical Grade, Hard Coated Lexan
PEAK INTENSITY (CANDELA)132,480cd
LUMENS2,880 LUMENS
HOUSING MATERIALA360.0 Cast face plate, extruded Aluminum heat sink
AMPERES2.5A @ 13.6v | 1.1A @ 24v
LIFESPAN50,000
FLOOD BEAM50°
SPOT BEAM5.8°
INGRESS PROTECTIONIP68
OPERATING TEMP-40°C to 60°C
WEIGHT1.020kg
STEDI 8 inch ST4K 12 LED Double Row Light Bar (Each) - LEDST4K-8-12L

WHAT'S INCLUDED

  • 1 x 8inch 12 STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 1 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Cable Ties
  • Wiring Instructions
